Specifications:
- Rated Line Pull 16,500 lbs (7,484 kg) single line
- Motor 5.8 hp / 4,325w 12V Series Wound
- Gear Ratio 3-Stage Planetary 343:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 3.5" x 8" (89 x 204 mm)
- Control waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Synthetic Rope
- Rope Size 1/2" x 82' (12 mm x 25 m)

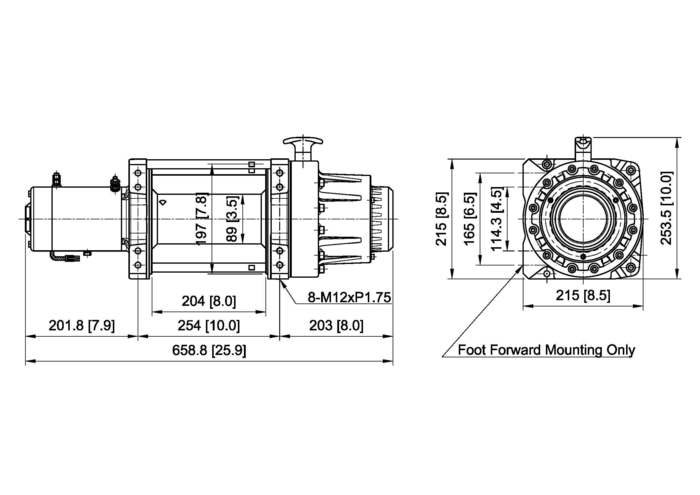

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm), 10" x 6.5" (254 x 165 mm)
- Winch Weight 132 lb (60 kg)
- Gross Weigh 150 lb (68 kg)
- Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
- Box Dimensions 27.2" x 10.6" x 15.9" (690 x 270 x 405 mm )
